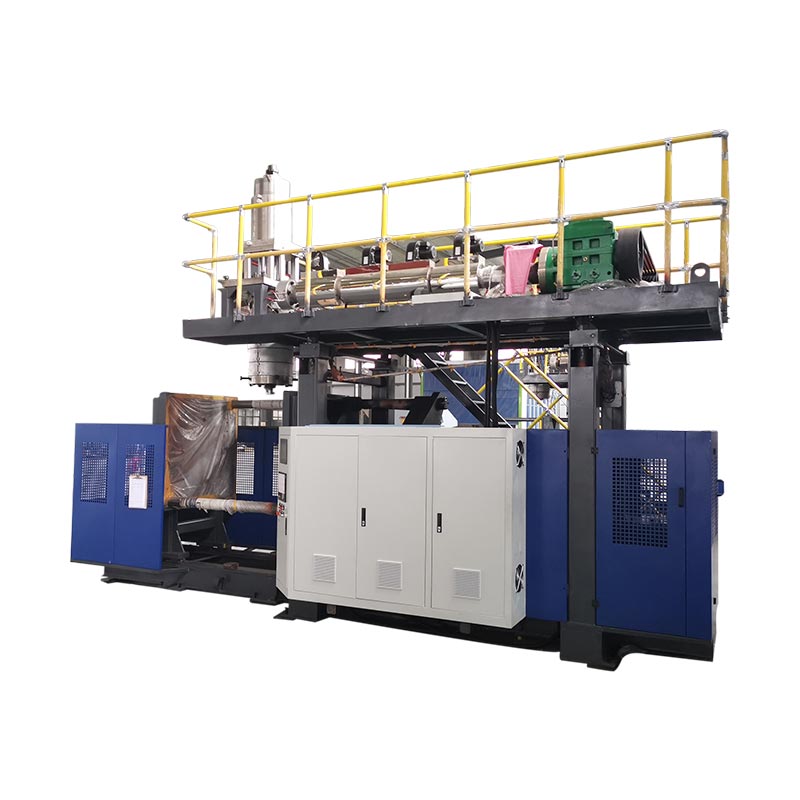

250l hōʻiliʻili i ka mīkini puhi ahi

Model:KGB120E

ʻO kēia wehe paʻaʻana a me ka paniʻana i nā mīkini puhi ahi, e hōʻike ana i nā popo stonchronus stonchronous a me ka hana kiʻekiʻe a me ka maikaʻi. Hoʻonohonohoʻia me ka'ōnaehana serdent serdedo no ka pane wikiwiki a me ka mana o ka ikaika, e hoʻokaʻawale i kēiaʻoihana nui i ka nui o nā huahana.

Volume: 250LKaumaha: 28t

E hoʻouna i ka nīnau

Hōʻike huahana Specification Application

ʻO ke kumu hoʻohālike KGB120E, e alakaʻi ana i kahi poʻo poʻo nui komo i kahi moog 100 consrotler kūloko, robot lima, a me lalo 'ōnaehana, hoʻonui i ka huahana a me ka maikaʻi. Ua kūpono kēiaʻano o kēia VERCATIVE 250L i ka mīkini wili blow No nā noi likeʻole, e komo pū me ka mīkini lāʻau lapaʻau blow molding nā hoʻonā, nā pale pepa pale pale pale pā uila ʻO nā palapala uilaʻo Tank Nā Kūlana Kūʻai, nā kaʻa kaʻa, kaʻa kaʻa, nā wahi kaʻa, nā wahi kaʻa, nā lāʻau lapaʻau, lāʻau lapaʻau mea pono, e kahe ana i nā kahu waiwai, nā wāwae, nā papaʻaina, nā palets, nāʻiʻo, a me nā mea hou aku.

Nā hiʻohiʻona a me nā pono

Hoʻohana no nā huahana hana i nāʻoihana likeʻole. Inā he nui nā mea e pili ana i nā corosion-resistant i kaʻoihana kemika, nā pahu e hoʻopili ana i nāʻoihana
ʻO ke kaʻina hana hana e hoʻopili ai i kaʻenehana cute-cecter i kohoʻia a i kohoʻia e pili ana i nā hiʻohiʻona kiʻekiʻe o ka mīkini mua o 120E. E hoʻoponopono pololei i ka huina o ka kahe a me ka hāʻawiʻana i nā waiwai e maopopo ai ka nui o ka nui o ka huahana, a hoʻopau i ka ikaika o keʻano he nui e hānai ana.

250L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB120E
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR

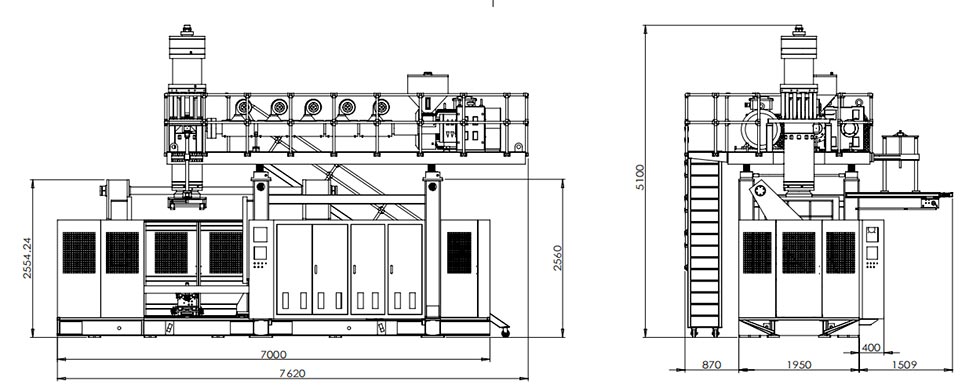

3	Machine Dimension(L×W×H)	7.6 M x 4.3 M x5.5 M
4	Machine weight	28 T
Clamping Unit
1	Clamping force	800 KN-1200 KN
2	Mold platen size(W×H)	1300 MM x 1400MM
3	Platen opening stroke	800 MM-1800 MM
4	Platen moving stroke	700 MM
5	Max mold size(W×H)	1100 MM x 1700 MM
6	Mold thickness	810 MM - 900 MM
Power
1	Servo oil pump motor power	37 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	80 KW -90 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	250 Kg/hr-320 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90(110) KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	600(700) MM
4	Accumulator capacity	20(25) L
5	(PE)Accumulator weight	15(18) KG
