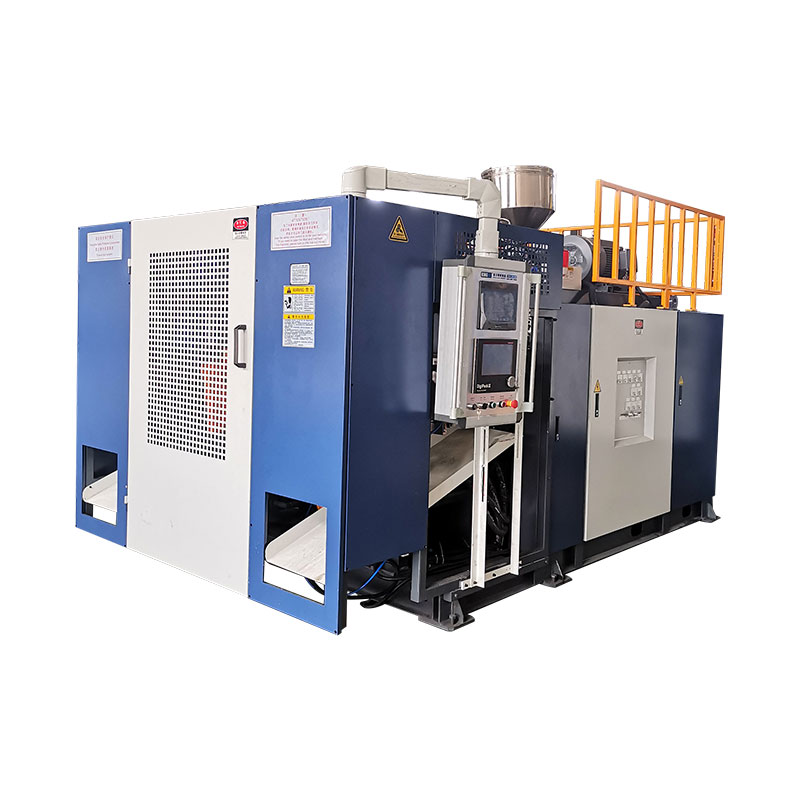

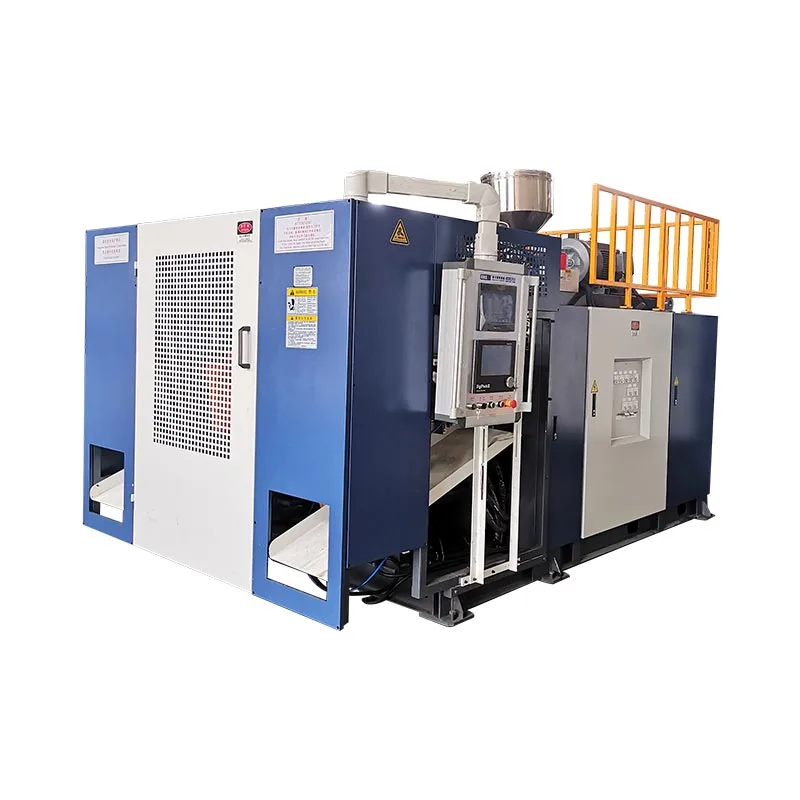

ʻO ka mīkini pālua 5l

Model:KGB5D

Hoʻonui i kāu hana me kā mākou papa inoa papa inoa o ka papa inoaʻo 5l Hāʻawi kēia mīkini kiʻekiʻe

VIMume: 5LKaumaha: 5.2T

E hoʻouna i ka nīnau

Hōʻike huahana Specification Application

Mai nā pahu liʻiliʻi liʻiliʻi i nā wahi nui o 5l,ʻo kēia papa pālua 5L hana maikaʻi a me ka maikaʻi maʻamau. Kūpono kūpono no nā noi likeʻole, komo pū me nā pale lāʻau holoi holoi paʻa i nā'ōnaehana i hoʻopaʻaʻia,ʻo ia hāʻawi i ka hana kūʻokoʻa a hoʻonui i kou hoʻiʻana i ka loaʻa kālā.

Nā hiʻohiʻona a me nā pono

● Kokua Uila pālua, me ka hoʻohanaʻana i ka bitle throvet throve no ka mold shfing, kūpono a paʻa a paʻa
Hi
● Hoʻopili ke'ōnaehana kikowaena i ka uila mitsubishi pmc, a me ka hanaʻole manuahi manuahi e hoʻoponopono a hoʻoponoponoʻia.
●ʻO ka nui o ka nui o ka nui o ka nui o ka huahana 5l,ʻo ia ka mea e makemake ai i nā mea e makemake ai i nā mea e pono ai no ka nui o ka hana ma mua o 2-5l.
● e like me nā hiʻohiʻona, hiki ke hoʻokaʻawaleʻia i loko o hoʻokahi'āpana, pālua,ʻekoluʻaoʻao, etc.
●ʻO ka'ōnaehana hydraulic ADOPTS ETOPTS ONCIAL EVIELL OINALOA, HOOPAU LOA

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
