2l pālua pālua florint

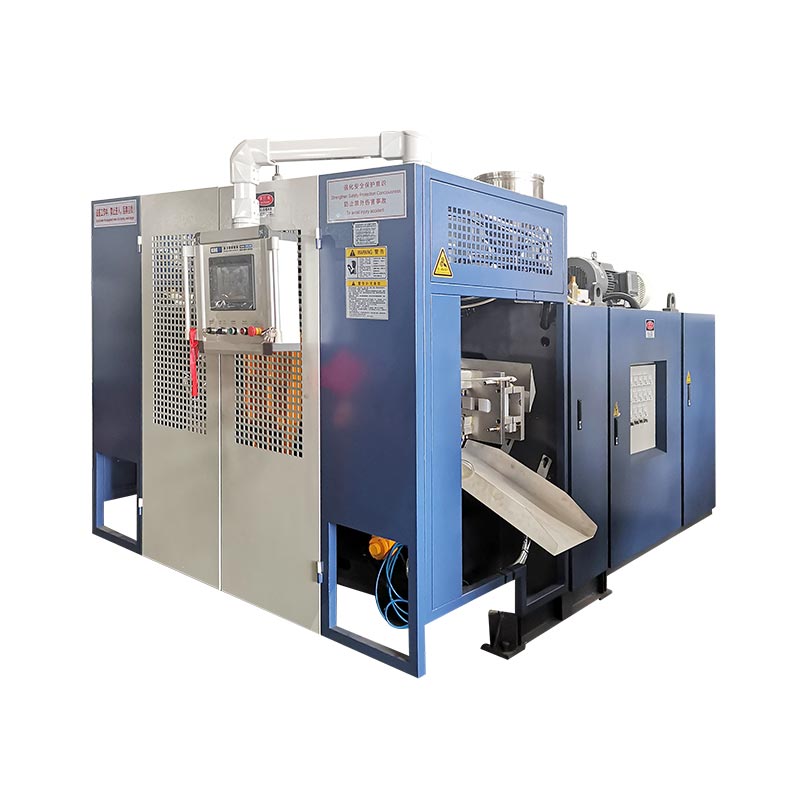

Model:KGB2D

Hoʻonui i kāu hana me kā mākou kiʻekiʻe kiʻekiʻe o ka pākuʻuʻelua o ka mīkini 3L. Hoʻolālā no ka nui o ka 2l mau mea e pono ai,ʻo kēia'ōnaehana system system e hōʻikeʻia e hana i kahi nui o nā huahana.

Volumume: 2lKaumaha: 4.5T

E hoʻouna i ka nīnau

Hōʻike huahana Specification Application

E hoʻololi maʻalahi i kahi 2, 3, a iʻole 4 paha i ka hoʻonohonoho poʻo poʻo nui e hoʻopili ai i nā helu liʻiliʻi liʻiliʻi, e hana ana i nā noi kūpono. Mai Shampoo Bottles i ka mume mume blad blow moding molding E makaʻala i ko mākou hoʻokūkū hoʻokūkū hoʻokūkū kīwī kīwī kīwī a wehe i ka hiki ke loaʻa i ka hiki ke loaʻa i ka loaʻa kālā.

Nā hiʻohiʻona a me nā pono

Hiki ke manaʻoʻia ka'ōnaehanaʻoihana maʻalahi ma like me ka "lolo akamai" o ka hana, e kūpono ana me nā kaʻinaʻoihanaʻoi aku me kaʻoihanaʻoihanaʻoihana pololei. I ka manawa like, e like me nā hoʻolālā noʻonoʻo o nā'ōhua manual e kūʻokoʻa i ka wā e hoʻomaka ai nā hana maʻamau a me ka maʻalahi o ka mīkini.
Nā hiʻohiʻona hoʻohālikelike a me nā hiʻohiʻona multifunctional e pili ana i ka hana liʻiliʻi o ka liʻiliʻi o nā mea liʻiliʻi a me nā'āpana liʻiliʻi o 2l a ma lalo. Loaʻa ka hoʻolālā kino kūpono i ka hana nui ma ka wahi palena loa, noho i kahi liʻiliʻi, maʻalahi ka wahi o nā papa hana hana kūikawā. Inā he hana liʻiliʻi paha a he hale hana nui paha, hiki iā ia ke maʻalahi, e mālama pono ana, e hāʻawi ana i nā hopena hana kūpono no nā hui likeʻole.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB2D
Specification
1	Max container capacity	2L
2	Output(dry Cycle)	600 x 2 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	4.5 T
Clamping Unit
1	Clamping force	40 KN
2	Mold platen size(W×H)	338 MM x 430 MM
3	Platen openingstroke	145 MM - 368 MM
4	Platen moving stroke	370 MM
5	Max mold size(W×H)	360 MM×380 MM
6	Mold thickness	160 MM - 300 MM
Power
1	Servooil pump motor power	11KW
2	Servo pump displacement	80 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	12 KW-18 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*5 ZONE
2	Heating power	3.2 KW
3	Maxdie-pin diameter	90 MM
4	2Center distance of double die head	130MM
5	2MTMax die-pindiameter	60MM

Hōʻailona Wela: 2l pālua pālua florint
