15l pālua pālua bloding molding

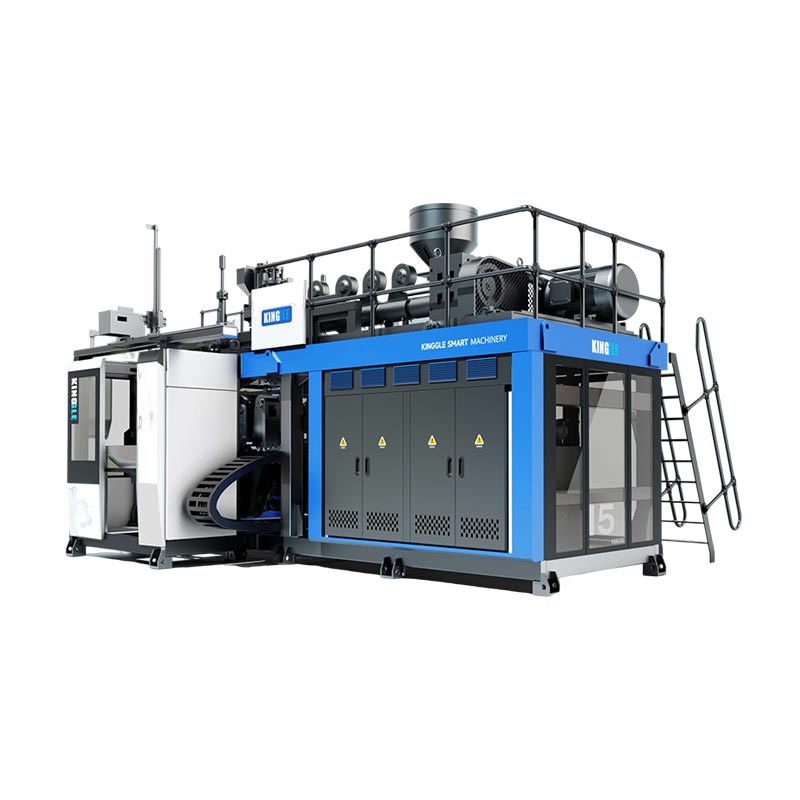

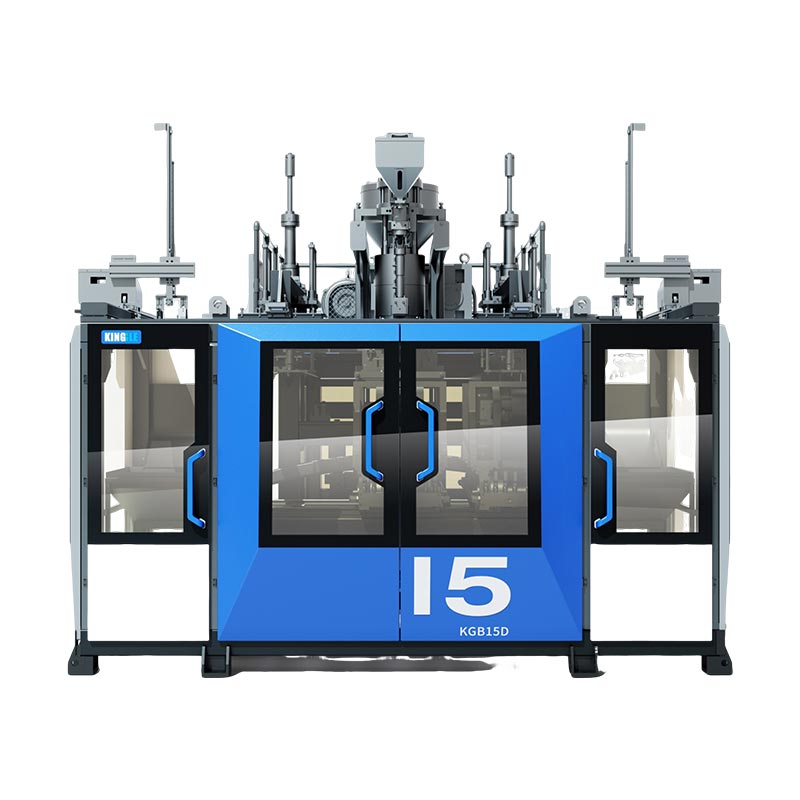

Model:KGB15D

E hoʻonui i kāu hana me kā mākou papa inoa pālua ma keʻano he mīkini papaʻahi ʻO kēia papa inoa o ka mīkini 15L kiʻekiʻe e hāʻawi ai i nā mīkini e pono ai, e komo pū ana me kahi 2, 3, a iʻole 4 mau poʻo nui e hana ai i kahi nui o nā'āpana pahu.

Volume: 15lKaumaha: 12.5t

E hoʻouna i ka nīnau

Hōʻike huahana Specification Application

Mai nā pahu liʻiliʻi liʻiliʻi i nā mea kanu 15l, e komo pū ana i nā papa inoa o ka plastik blow molding Kūpono kūpono no nā noi likeʻole, me nā mea e pili ana i ka hanaʻana i nā mīkini i ka mīkini hana o kēlā me kēia lā, e like me ka shampoto, a me nā cosmetics, a me nā cosmetic

Nā hiʻohiʻona a me nā pono

ʻO ka hana pālua,ʻo Synchronized e hoʻolaha ana i ke kaʻina hana, ua pōkole loa i ka hana o ka hana o 30l, a me ka hopena o ka hana nui.
Hoʻohālikelikeʻia me ka hana hoʻololiʻana i keʻano o ka molū
Mitsubishi Plc Main World World
Hiki iā mākou ke hana i nā mea kanu 15l me hoʻokahi,ʻelua mau'āpana,ʻekolu, a me nā laina e pono ai, a me nā mea kūʻai aku, a me nā mea kanu.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15D
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450x2 PC/HR
3	Machine Dimension(L×W×H)	4.8M x2.9 M x2.8 M
4	Machine weight	12.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×550 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.1 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	110 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	120 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
