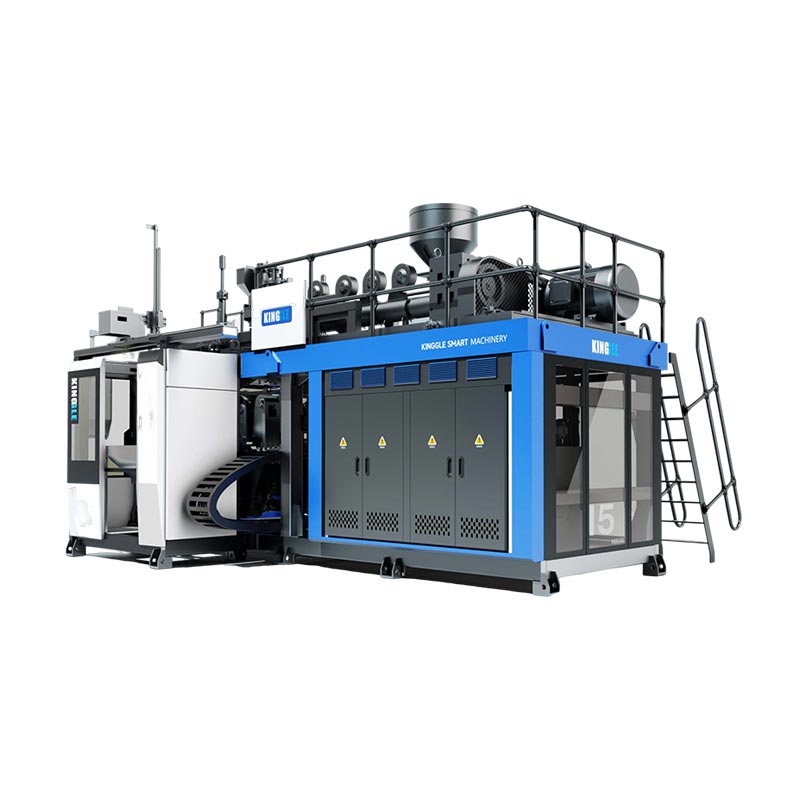

ʻO 15l kahi mīkini kīwī

Model:KGB15L

Hoʻonohonohoʻia no ka hana kiʻekiʻe-volume kiʻekiʻe,ʻo kēia kalima mau kikowaena kūwaho nui loa i ka hanaʻana i nā mea hana ma nā wahi e hana ai i 15l. Hiki i kona hoʻolālā hoʻonohonoho hoʻololi i ke hoʻololiʻana i keʻano o ka senseless ma waena o hoʻokahi a me nā mea e koiʻia ana, e hōʻoia i ka hana maikaʻi loa no nāʻano kiko'ī Hiki iāʻoe ke kūʻai i ka papa inoa o ka papa inoa o ka papa inoa o ka papa inoa o ka waihona

Volume: 15lKaumaha: 7.5T

E hoʻouna i ka nīnau

Hōʻike huahana Specification Application

Mai Shampoo Bottles i nā noi blue blot blow blue E hoʻokiʻekiʻe i kāu mau hana hana me kēia mīkini ikaika a me ka mīkini mīkini.

Nā hiʻohiʻona a me nā pono

Ua hoʻolālāʻia keʻano o ke poʻo mīkini i kahi hana e hanaʻia no 15l hiki ke hoʻokō i ka nui o ka nui o ka nui
Ke hilinaʻi nei ma luna o nā'ōnaehana uila holomua holomua, e like me ka hana a ke kaʻina hana loina, e like me nā hana kūpono, me ka pilina Hiki i nā mea hana ke hana maʻalahi i ka calibration kūpono e like me nā kūlana hana maoli, e hōʻoiaʻiʻo ana e noʻonoʻo pono ana i nā pono o ka mākeke. Hiki iā ia ke hana i nā hoʻopili o 15l i nā hana likeʻole e like me ka hanaʻelua, a paʻa paha ka huahana me nā huahana kūikawā a me nā mahina āpau.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15L
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450 PC/HR
3	Machine Dimension(L×W×H)	4.5M x2.2 M x2.8 M
4	Machine weight	7.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×500 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.8 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	70 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	75 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	100 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	30 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
