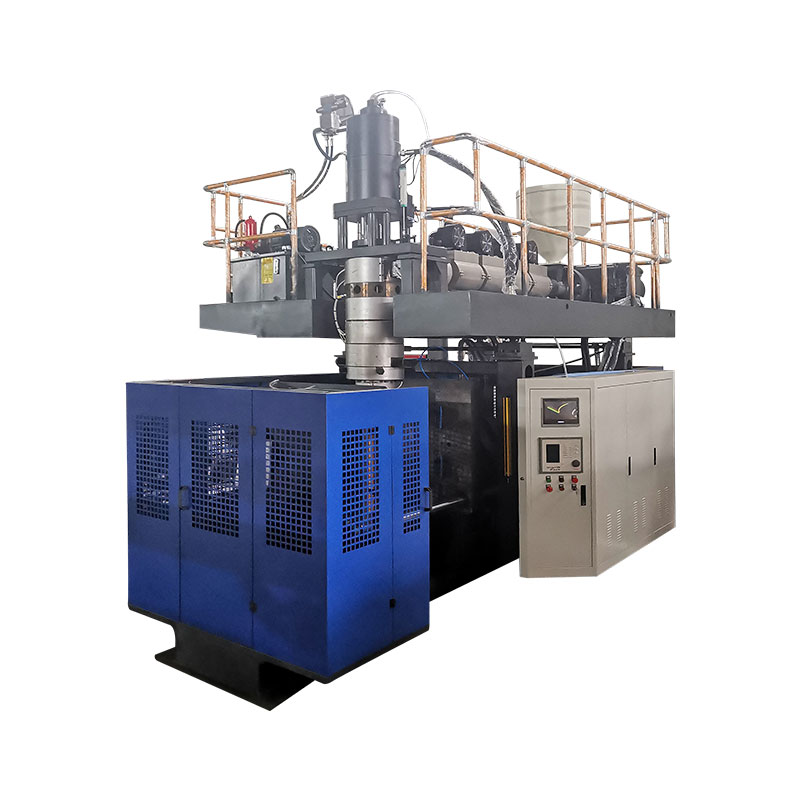

60l hōʻiliʻili i ka mīkini puhi ahi

Model:KGB90A

ʻO kēia wehe paʻaʻana a me ka paniʻana i nā mīkini puhi ahi, e hōʻike ana i nā popo stonchronus stonchronous a me ka hana kiʻekiʻe a me ka maikaʻi. Hoʻonohonohoʻia me ka'ōnaehana serdeword hyderanic no ka pane wikiwiki a me ka mana o ka nui,ʻo 60L i hoʻohui i nā'āpana he nui i ka nui o nā huahana.

Volume: 60lKaumaha: 14t

E hoʻouna i ka nīnau

Hōʻike huahana Specification Application

ʻO ka micr90A maʻamauʻo KGB9SLLS, A e alakaʻi ana i kahi mīkini kīwaha e alakaʻi ana, e pili ana i ka momi ma keʻano. ʻO kēia 60l e hōʻiliʻili i ka mīkini wili blow e kūpono no nā koho balota o nā mīkini, a me nā pakanā kīwaha, nā papa hana manuahi, nā papa hana manuahi.

Nā hiʻohiʻona a me nā pono

ʻO kēia hiʻohiʻona kahi wehe paʻaʻana a me keʻano e pani ai, me ka hoʻohanaʻana i kahi cyn cynchronous counting cynchronous
● E hoʻopau i ka cyillie e hoʻopau i ke poʻo poʻo
● kiʻekiʻe loa ma ka nui 60l
● kūpono no nā mea kanu lāʻau lapaʻau, nā mea pāʻani nui, nā mea pāʻani nui, abs kaʻa kaʻa, etc.
● Ke hoʻohanaʻana i kaʻenehana kūikawā

60L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Fixed open- closing type Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB90A
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

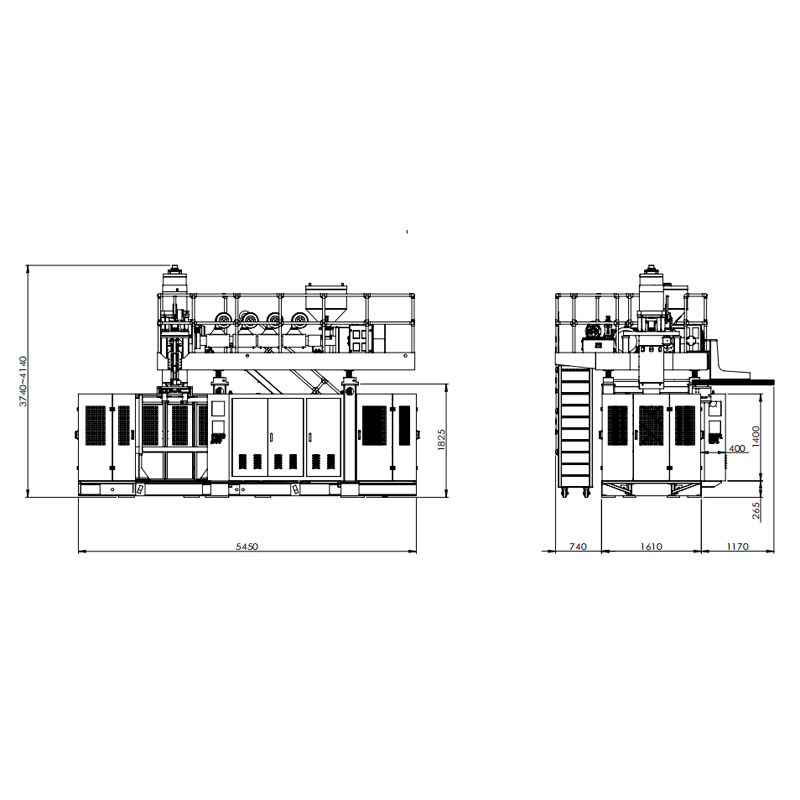

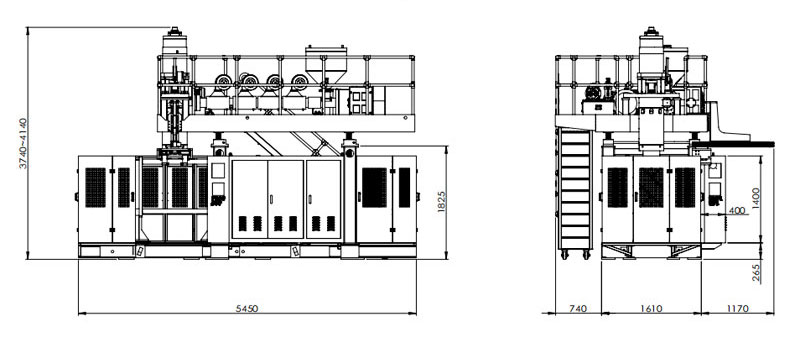

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	14 T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen opening stroke	450 MM-1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM x 980 MM
6	Mold thickness	460 MM-550 MM
Power
1	Servo oil pump motor power	18.5 KW
2	Servopump displacement	150 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW-45 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr-160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fan power	0.5 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Max die-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG

Hōʻailona Wela: 60l hōʻiliʻili i ka mīkini puhi ahi
