ʻO ka mīkini wili o ka mīkiniʻoniʻoni

Model:KGB110A-ABS

E hoʻololi i kāu mau auto i ka hana me ka KGB110A-Fos,ʻo ka cuting-cedice-cedice e hoʻokaʻawale i nā mea kūʻai aku no nā mea kūʻai aku i nā mea kūʻai Pono nā mea kūpono no ka mīkini pūʻana e like me nā mea hao e like me nā mea hao a me nā dashboards, kōkuaʻoe e alakaʻi i ka mākeke kaʻa me ka maikaʻi o ke kaʻa.

Volume: /Kaupaona: 25t

E hoʻouna i ka nīnau

Hōʻike huahana Specification Application

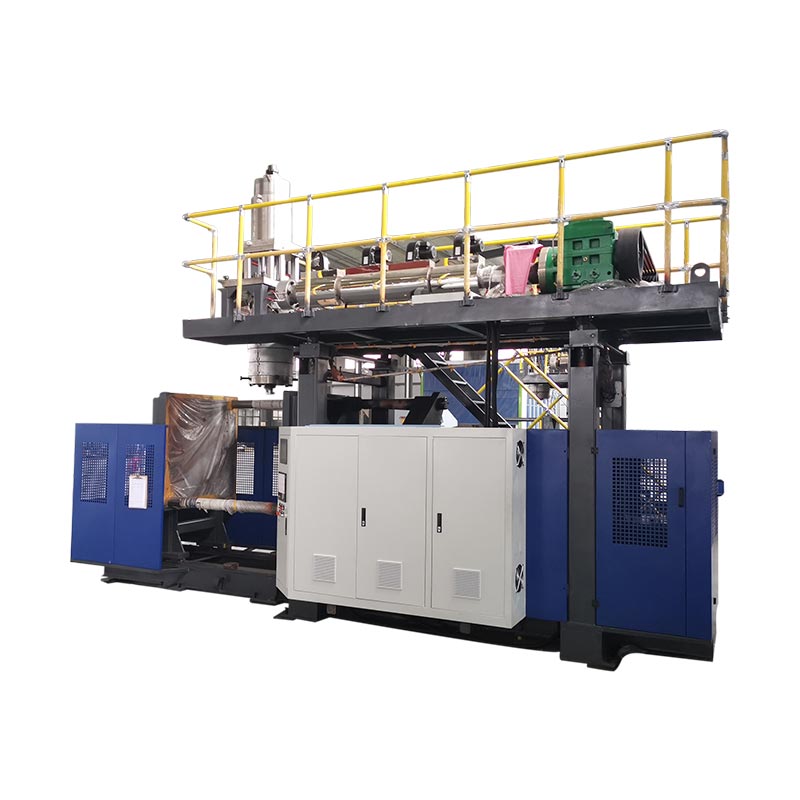

ʻO KGG110A-ABS kahi mīkini hoʻohālike kūikawā no nā mīkini modi no kēlā mau wahi o nā wahi mea hana. ʻO ka mīkini Moding Moding Moding Moding Moding me ke kiʻekiʻe kiʻekiʻe kiʻekiʻe a me ka puhiʻana i E hana i ka papa kūpono e mālama i ka manawa hana. A me nā mīkini hana E hoʻomaʻemaʻe i nā huahana Spender Brandy o nāʻoihana, mālama i nā uku kūʻai kūʻai kūʻai.

Nā hiʻohiʻona a me nā pono

E hoʻopaʻa i ka hohonu hohonu i loko o kaʻenehana i hiki ke hāʻawi i nā hopena huahana kiʻekiʻe-ikaika no nā mea kūʻai aku no nā mea kūʻai aku; Hiki nō hoʻi iāʻoe ke kūkulu i ka pāluaʻelua a iʻole he mau papa hana hoʻohui me ka exquisite craftsmanship
ʻO nā hana nui o ka nui o nā mīkini wili o 110A-abs blow i ka mīkini wili me kahi pohō a me keʻano o ka modspus hydraulic mana. Ke hoʻomau nei ka hoʻounaʻana a me ka mana o ka mana o ka mana a me ka weheʻana i nā hana hana, hiki ke mālama i nā huahana kiʻekiʻe a me nā mea kiʻekiʻe.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB110A-ABS
Specifications
1	Max container capacity	/
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M x 5.2 M
4	Machine weight	25 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1100 MM x1600 MM
3	Platen openingstroke	600 MM -1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	1000 MM×1400 MM
6	Mold thickness	610 MM -750 MM
Power
1	Servooil pump motor power	30 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	28 L/D
3	Melting capacit for HDPE	180 Kg/hr -220 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.5 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	12(20) L
5	(PE)Accumulator weight	9(15) KG
